Prisjämförelse för Rigger Pulley
Produktinformation
Rigger Pulley är rankad på plats 3 av 8707 i trädgård. Bästa pris är 791 kr

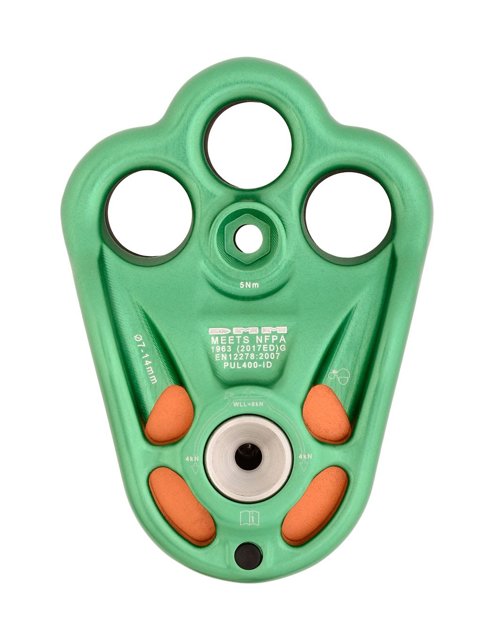

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.
The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.Features:Ultra-high strength pulley side platesHigh efficiency roller bearingsHollow axle for reduced weightIncreased rope-bearing cross-sectionfor textile attachments to the attachment holesSame sheave as previous Triple Attachment PulleyNew axel design to increase robustness of the axle/ nut to the side plate interfaceOptional M5 nut and bolt for locking side plates together and can be installed from either side.DMM ID optionalCan be used as rig plate, with or without sheave Specifications:Rope Range - 7 - 14 mmDimensions - 68 x 94 mmSheave diameter - 28 mmWeight - 176 gWLL - 8 kNMBS - 40 kNConformance - EN2278:2007, NFPA 1983 (2017)G
Modellnamn: Rigger Pulley
Tillverkare: Ej angivet
Kategori: Trädgård (Trädgårdsredskap)
