Prisjämförelse för SMB 1000 Rigging Bollard
Produktinformation
SMB 1000 Rigging Bollard är rankad på plats 3 av 8707 i trädgård. Bästa pris är 3 801 kr

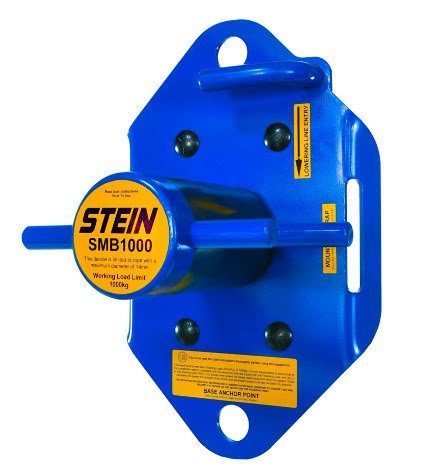

The STEIN SMB1000 single bollard lowering device has a WLL of 1000kg and designed to work effectively with ropes of
up to 14mm (Recommended Rope - STEIN Omega 12mm or 14mm). The line is guided down to the bollard and managed
by fairleads both front and rear.
To help prevent damage to the tree the device is fitted with 2 replaceable heavy duty Tree Protection Rubbers made from
a hardwearing blend of SBR/NR rubber.
The device weighs in at just 4.4kg so can easily be mounted by one person utilising the top suspension point with the
recommended STEIN Mounting Strap (SS-RCP6004).
For added security it is recommended the device is backed up by securing a sling to the base anchor point terminated in a
self-tightening hitch such as a cow-hitch or timber-hitch. (Recommended Sling - STEIN 20mm Multi-Sling SS-3372008005).
Ratchet Strap Specifications
Supplied with a specially designed ratchet strap fitted with Carbon Steel hooks with Keeper Pins to prevent the mounting
hooks detaching from the device when not under tension. The webbing is made from a high tenacity 50mm wide polyester
yarn and is UV resistant with a 6000kg breaking strength.
This strapping system allows the device to be fitted to tree with a diameter of up to 145cm
The ratchet meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires
the buckle to have a lashing capacity (LC) of 1000daN. This capacity is stamped on the ratchet together with a label for full
traceability. The breaking strength (BS) of 2000Kg is also shown to indicate the maximum load that can be applied to the
buckle before failure.
Working Load Limit: 1000 Kg (WLL) Refer to to manual
Dimensions: 210 mm8w) x 310 mm (h)
Bollard Dimension: 73 mm diameter x 140 mm (l)
Materials: Back plate 5 mm Steel
Fairleads: 15 mm solid bar
Body Finish: Powder coated
Bollard Finish: Lacquered with rust prevention
Rubbers: 148 mm (l) x 50 mm (w) x 50 mm (h)
Rubber Material: SBR/NR rubber
Rubber Hardness: 70 medium /hard /Shore A Scale)
Strapping System: Ratchet handle with tail
Webbing length: 4,65 m (5.0 combined with ratchet handle)
Weight: 4,65 Kg (excluding ratchet strap, 5,8 Including ratchet strap
Modellnamn: SMB 1000 Rigging Bollard
Tillverkare: Ej angivet
Kategori: Trädgård (Trädgårdsredskap)
